Piping Stress Analysis Integration Solution
J-Stress: Seamless Integration of Stress Analysis and 3D Modeling
J-Stress instantly reflects stress analysis results through bidirectional integration between Caesar II and 3D models.
Contact Us
Enhance design reliability through data consistency and document synchronization.
Enhance Design Reliability by Integrating Stress Analysis with 3D Design Integrate stress analysis with 3D design in real time.
-
Enhanced Design Reliability Through Bidirectional Integration
Manual data transfer creates errors—leverage 3D CAD modeling information to instantly update Caesar II and quickly review Caesar II results in 3D CAD to ensure data consistency and high-quality reliability.
-
Secure Schedule Through Shorter Iteration Cycles
Manual updates slow down revision cycles—quickly update support structures, materials, routing, and ISO drawing information to significantly reduce revision time and accelerate approval cycles.
-

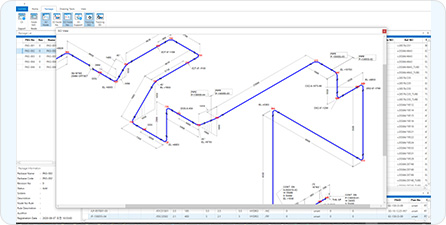

Intelligent ISO
Manual node documentation is error-prone—provide intelligent ISO drawings with 3D and node details to easily implement 1D/2D/3D interfaces.
Why Choose J-Stress
-
Business Process Improvement
• Perform stress analysis directly in Caesar II using extracted 3D CAD data.
• Minimize duplication between 3D CAD and analysis software.
• Immediately verify routing changes in 3D CAD. -
Review and Package Management

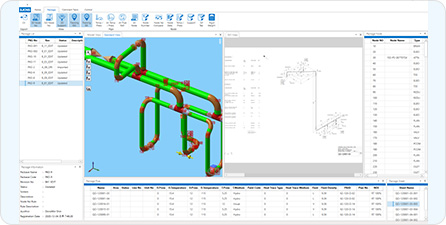

• Review 3D, ISO drawings, node and piping details on a single screen.
• Provide automatic or user-selected node numbering. -
Minimize Time in Caesar II
• Export data in CII format for direct Caesar II analysis.
• Save time and costs by eliminating 3D modeling in analysis software.
• Minimize human errors using node-specific 3D CAD information. -
Efficient Collaboration Time
• Review Caesar II results in real-time 3D CAD.
• Verify routing changes and clash checks immediately.
• Minimize collaboration time between 3D and analysis engineers.
-
FAQ
-
- J-Stress는 Caesar II와 어떻게 연동되나요?
- Caesar II와 AVEVA E3D/S3D 간 양방향 데이터 연동을 통해 응력 해석 결과를 3D 모델에 반영합니다.
- 반복적인 수정 작업을 줄일 수 있나요?
- 서포트, 재질, 라우팅, ISO 도면 정보가 연동되어 수정·검토 사이클을 단축할 수 있습니다.
- 협업 측면에서의 장점은 무엇인가요?
- 해석 결과를 3D 환경에서 바로 검토할 수 있어 해석 엔지니어와 3D 엔지니어 간 협업 효율이 향상됩니다.
-
