J-Checker: 3D Engineering Quality Management System for Minimizing Errors
J-Checker eliminates errors proactively through integrated verification of clash checks, design rule checks (DRC), and ISO drawings.
Contact Us
Enhance quality and traceability through web-based collaboration and approval history management.
Strengthen Competitiveness with Zero Engineering Errors Achieve rule-based quality control with integrated 3D verification.
-
Proactive Error Prevention to Minimize On-Site Rework
Design errors in field-issued drawings create rework and delays—centrally manage 3D clash checks, design rule checks, and ISO comments to eliminate error-containing drawings before field release and significantly reduce on-site rework and schedule delays.
-
Enhanced Traceability Through Web-Based Collaboration
Manual tracking of approvals and changes creates accountability gaps—centrally manage comments, approvals, and change histories in 3D CAD, NavisWorks, and proprietary viewer to improve traceability, accountability, and communication quality.
-
Stable Scheduling Through Automated Large-Scale Verification
Manual review of large models creates bottlenecks—reduce large-scale review time through batch and incremental testing to eliminate bottlenecks and enhance delivery reliability.
Why Choose J-Checker
-
Prevent Incorrect Drawings and Integrate Error Management

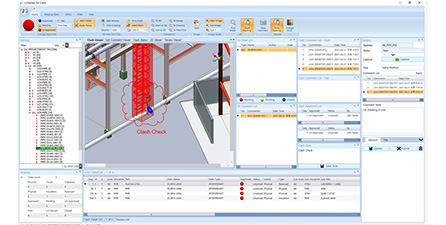

• Manage all engineering errors in a single interface—3D clash checks, design rule checks, review comments, and ISO comments.
• Apply review results automatically to drawings through API integration.
• Prevent construction errors and minimize on-site rework. -
Real-Time Communication with Workers
• Communicate across locations using web-based tools.

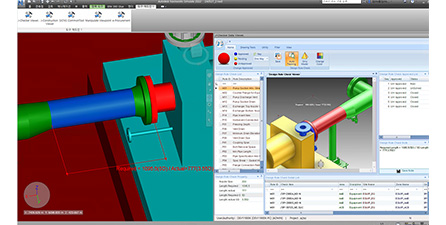

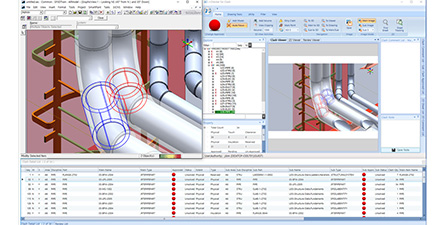

• View clash results, design rule checks, and review comments in real time through E3D, S3D, and Navisworks add-ins. -
Ensure Quality Accountability Through History Management
• Significantly reduce review time with robust approval management.
• Minimize review points with optimized check logic. -

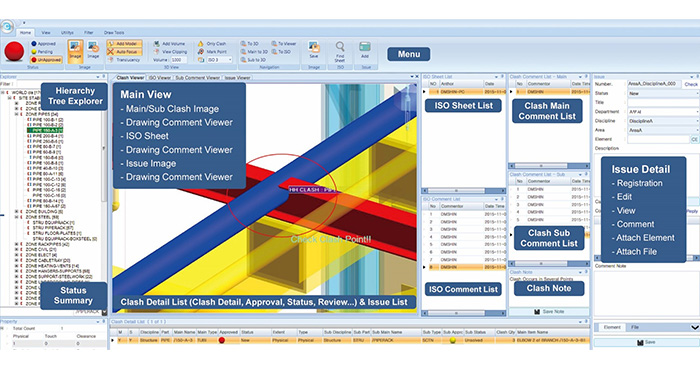

Intuitive Review Environment via Dedicated Data Viewer
• Consolidate and manage all validation data on a single screen.
• Exchange feedback in real time via integrated communication tools.
• Auto-generate professional reports with before & after comparisons.
-
FAQ
-
- J-Checker는 기존 3D 설계 환경에 어떻게 적용되나요?
- J-Checker는 AVEVA E3D, Hexagon S3D, Autodesk Naviworks 등 기존 3D 설계 환경에 Add-In 및 연계 방식으로 적용됩니다. 기존 설계 프로세스를 변경하지 않고 품질 관리 기능을 추가할 수 있습니다.
- 기존 Clash Check 툴과의 차이점은 무엇인가요?
- J-Checker는 단순 간섭 검증을 넘어 Design Rule Check, Design Review Comment, ISO Comment를 하나의 품질 관리 체계로 통합합니다.
- 대규모 프로젝트에서도 안정적으로 사용할 수 있나요?
- 네. 증분 검증과 우선순위 분석, 대용량 데이터 처리 구조를 적용하여 대형 EPC 프로젝트에서도 안정적인 품질 검증이 가능합니다.
-
